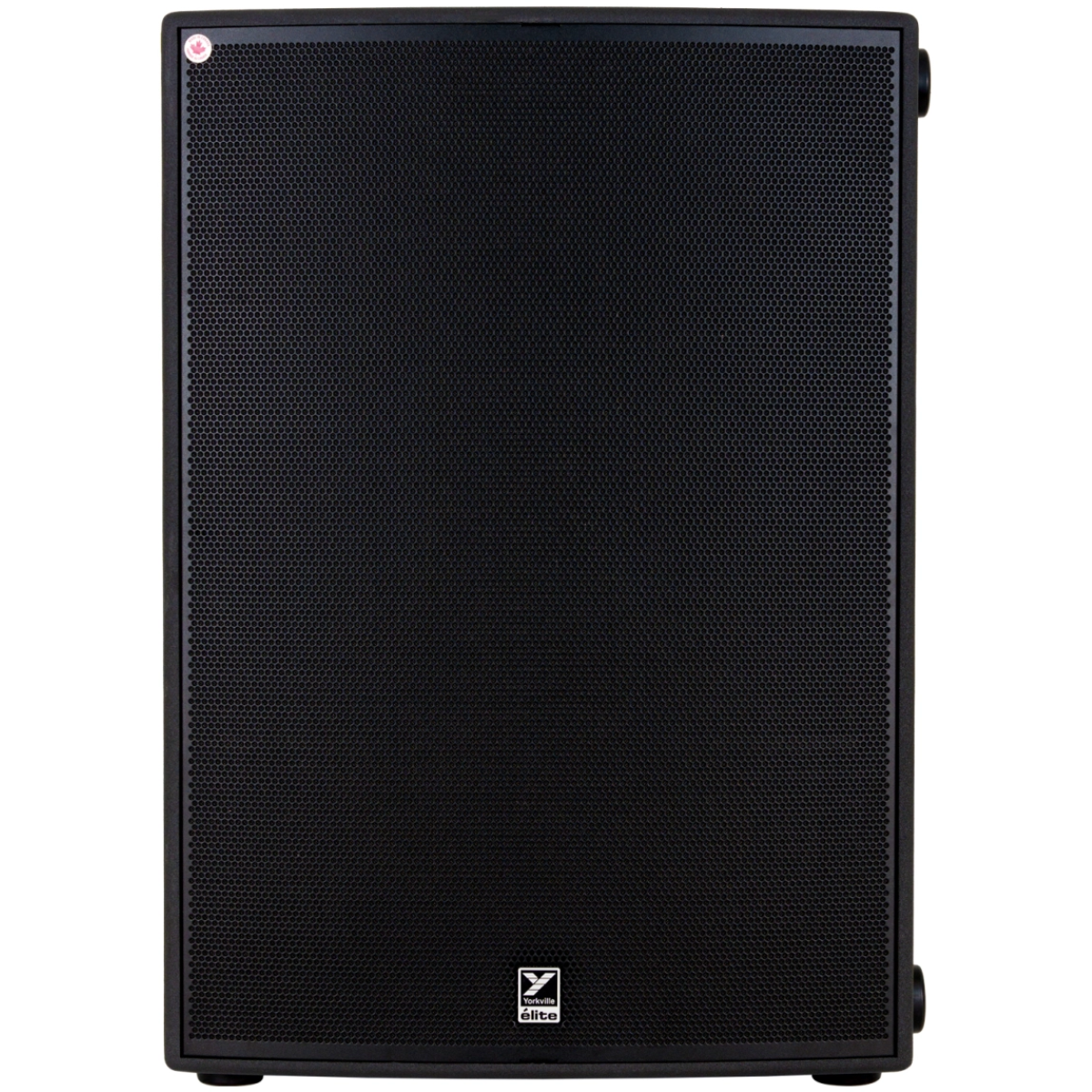

Yorkville EL24S | 24in - 143dB Peak SPL | 5000W Powered Subwoofer

Yorkville EL24S  (Yorkville EL-24S)

Powered Subwoofer

The Yorkville EL24S is a high-output powered subwoofer built around a massive 24-inch neodymium woofer with a 6-inch voice coil. Delivering 5000 watts peak power, up to 143 dB peak SPL, and frequency response extending down to 30 Hz, it provides exceptionally deep low-frequency reinforcement for demanding professional live sound systems.

Yorkville EL24S Competitive Differences

• 24-inch neodymium woofer with a large 6-inch voice coil
• 5000W peak power and 2500W program power
• 143 dB peak SPL with 137 dB continuous output
• 30 Hz - 100 Hz frequency response for deep low-frequency extension
• 15 mm birch plywood cabinet designed for professional touring and live sound use
• Top and side pole mount adapters provide flexible system configuration
• Made in Canada at Yorkville's manufacturing facility

Yorkville EL24S Description

The Yorkville EL24S combines extremely high output with unusually deep bass extension in a powered enclosure designed for professional sound reinforcement. Its 24-inch neodymium low-frequency driver and 6-inch voice coil handle substantial power while producing frequencies down to 30 Hz.

The integrated amplification system delivers 5000 watts peak and 2500 watts program power, allowing the EL24S to produce a maximum peak SPL of 143 dB and continuous output up to 137 dB. An onboard limiter helps protect the system during demanding performances, while the 100 Hz crossover makes integration with full-range loudspeakers straightforward.

The enclosure is constructed from 15 mm birch plywood with a powder-coated steel grille and textured paint finish for durability in mobile and installed applications. Two rigid and two swivel casters help move the 240-pound cabinet, while multiple top, side, and bottom bar handles provide numerous handling points.

Connectivity includes two XLR/1/4-inch TRS combo inputs, two full-range XLR link outputs, and two high-pass XLR outputs. powerCON TRUE1-compatible input and output connections support professional power distribution, while top and side pole mount adapters provide additional setup flexibility for live sound systems, venues, production companies, and high-output mobile applications.

EL24S Features

• 5000W peak power
• 2500W program power
• 143 dB peak SPL
• 137 dB continuous SPL
• 24-inch neodymium woofer
• 6-inch voice coil
• 30 Hz - 100 Hz frequency response
• 100 Hz crossover frequency
• Onboard limiter
• 2 XLR/1/4-inch TRS combo inputs
• 2 XLR full-range link outputs
• 2 XLR high-pass outputs
• powerCON TRUE1-compatible power input and output connectors
• Power, activity, and protection LED indicators
• 15 mm birch plywood enclosure
• Powder-coated steel grille
• Textured paint finish
• 2 rigid and 2 swivel casters
• Top and side pole mount adapters
• Made in Canada

EL24S Specifications

• System Type: Powered Subwoofer
• Power Rating: 5000W Peak / 2500W Program
• Max SPL: 143 dB Peak / 137 dB Continuous
• Frequency Response: 30 Hz - 100 Hz (+/- 3 dB)
• Crossover Frequency: 100 Hz
• LF Driver: 24-inch Neodymium Woofer with 6-inch Voice Coil
• Inputs: 2 XLR / 1/4-inch TRS Combo Jacks
• Outputs: 2 XLR High-Pass, 2 XLR Full-Range Link
• Power Connections: powerCON TRUE1-Compatible Input / Output
• Power Consumption: 6.5A Typical / 12A Maximum
• Level Controls: Yes
• LED Indicators: Power, Activity, Protection
• Wheels: 2 Rigid / 2 Swivel Casters
• Bar Handles: 2 Top / 6 Side / 2 Bottom
• Flying Hardware: No
• Pole Mount Adapters: 1 Top / 1 Side
• Enclosure Material: 15 mm Birch Plywood
• Grille: Powder-Coated Steel
• Finish: Textured Paint
• Dimensions (D x W x H): 31.4 x 27.9 x 39 in (79.8 x 70.9 x 99.1 cm)
• Depth with Casters: 36.6 in (93 cm)
• Weight: 240 lb (109 kg)
